800 Tonne Wide Body Shackles , ASME B30.26 DNV Bow Type Shackle

Shanghai Anfeng Lifting & Rigging LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

800 Tonne Wide Body Shackles , ASME B30.26 DNV Bow Type Shackle

  • 1
  • 2

Brand Name : Anfeng / AF

Model Number : KWB-800

Certification : CE, GS, ISO

Place of Origin : China

MOQ : 500 pcs

Price : Call or Email for quote

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : Within 45 days after order confirmation

Packaging Details : Carton + pallet, wooden box, or custom

Key word : Wide Body Bow Shackle with Safety Bolt, high load capacity, with increased bow radius to improve life of sling

Material : Cast alloy steel, forged alloy steel, quenched and tempered

Finish : shackle bow painted silver and pin painted yellow

Safety factor : 5:1

WLL : 800 tonne

Standard : ASME B30.26-2004

Custom services : OEM or ODM

Packaging : Carton + pallet, wooden box, or custom

Type of shackle : bow shackle

Bolt type : Safety bolt with nut and cotter pin

Contact Now

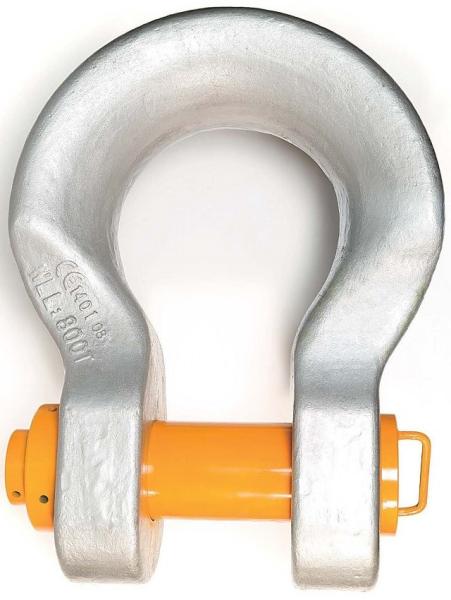

  • 800 tonne Wide Body Bow Shackle with Safety Bolt, DNV type approval, high load capacity, with increased bow radius to improve life of sling
  • Wide Body Shackle, high load capacity bow shackle with safety bolt
Product Overview
Compared to our standard bow shackles, Wide Body Shackles have an increased bow radius to improve the sling resistance to wear and tear and enable you to use a lighter wire rope to lift the same heavy load. Galvanization of the Wide Body Shackle ensures long-term durability.
Wide Body Shackle is a bow shackle with improved bow radius that greatly improves life of wire rope slings. The shackle is high load capacity bow shackle with safety bolt, nut and cotter pin. They are excellent choice for heavy lifting projects due to the shape of the shackle crown.
They are available in a range with a working load limit from 7 up to 1550 tons. Can be used to connect wire rope sling, high strength synthetic webbing sling or round slings.
Product features:
- Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings.
- Can be used to connect high strength synthetic web slings, high strength synthetic round slings or wire rope slings.
- All sizes quenched and tempered for maximum strength.
- Forged alloy steel from 7 through 300 metric tons.
- Cast alloy steel from 400 through 1550 metric tons.
- Sizes 300 metric tons and smaller are proof tested to 2 times the working load limit.
- Sizes 400 metric tons and larger are tested to 1.33 times working load limit.
- Sizes 300 metric tons and smaller are proof load is 2 times the working load limit.limit.
- Sizes 400 metric tons and larger are proof load is 4.5 times the working load limit.
- Shackles bows are all hot dip galvanized , screws and the bolts are painted yellow or customized request.
- Meets or exceeds all requirements of ASME B30.26-2004,RR-C-271D.
- Type approval certification in accordance with DNV for certification of lifting appliances available. Certificates available when requested at time of order and may include additional charges.
800 Tonne Wide Body Shackles , ASME B30.26 DNV Bow Type Shackle
Specification
800 Tonne Wide Body Shackles , ASME B30.26 DNV Bow Type Shackle
WLL
(tons)
Dimensions (mm)
Weight
(kg)
Product code
A B C D E G H J K P R
+/-6.35 +/-0.5
KWB-7 7 263 31.8 17.5 22.4 46.2 31.8 90.4 40.6 31.8 104 149 1.8
KWB-12.5 12.5 137 42.9 23.4 28.7 60.5 34.8 118.0 54.1 41.4 140.0 194.0 4.5
KWB-18 18 170.0 51.6 29.5 35.1 68.3 38.1 148.0 63.5 50.8 172.0 238.0 6.8
KWB-30 30 195 60.2 35.1 41.4 88.9 44.5 176.0 79.5 63.5 216.0 289.0 11.3
KWB-40 40 236.0 73.2 42.9 50.8 102.0 58.7 205.0 95.3 76.2 270.0 346.0 15.9
KWB-55 55 263 82.6 50.8 57.2 118.0 66.8 238.0 114.0 88.9 311.0 397.0 32.2
KWB-75 75 365.0 105.0 53.8 69.9 127.0 63.5 293.0 121.0 92.5 312.0 468.0 45.0
KWB-125 125 419 130.0 65.0 80.0 145.0 80.0 365.0 150.0 110.0 380.0 575.0 73.0
KWB-200 200 525.0 150.0 85.1 105.0 185.0 110.0 480.0 205.0 137.0 495.0 757.0 227.0
KWB-300 300 615 187.0 102.0 133.0 235.0 137.0 600.0 264.0 160.0 594.0 946.0 368.0
KWB-400 400 769.0 220.0 131.0 160.0 300.0 160.0 575.0 320.0 185.0 690.0 985.0 472.0
KWB-500 500 847 250.0 146.0 180.0 340.0 170.0 630.0 340.0 225.0 790.0 1085.0 625.0
KWB-600 600 915.0 275.0 158.0 200.0 384.0 185.0 700.0 370.0 247.0 865.0 1200.0 831.0
KWB-700 700 988 300.0 167.0 215.0 376.0 200.0 735.0 400.0 270.0 940.0 1275.0 1109.0
KWB-800 800 1058.0 325.0 185.0 230.0 420.0 210.0 750.0 420.0 277.0 975.0 1323.0 1368.0
KWB-900 900 1111 350.0 198.0 250.0 430.0 220.0 757.0 440.0 293.0 1025.0 1373.0 1559.0
KWB-1000 1000 1168.0 380.0 212.0 270.0 450.0 230.0 760.0 460.0 308.0 1075.0 1405.0 1824.0
KWB-1250 1250 1266 430.0 232.0 300.0 533.0 265.0 930.0 530.0 323.0 1175.0 1660.0 2588.0
KWB-1550 1550 1394.0 465.0 269.0 320.0 605.0 404.0 1075.0 580.0 338.0 1255.0 1865.0 3650.0
About Anfeng Lifting & Rigging
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
